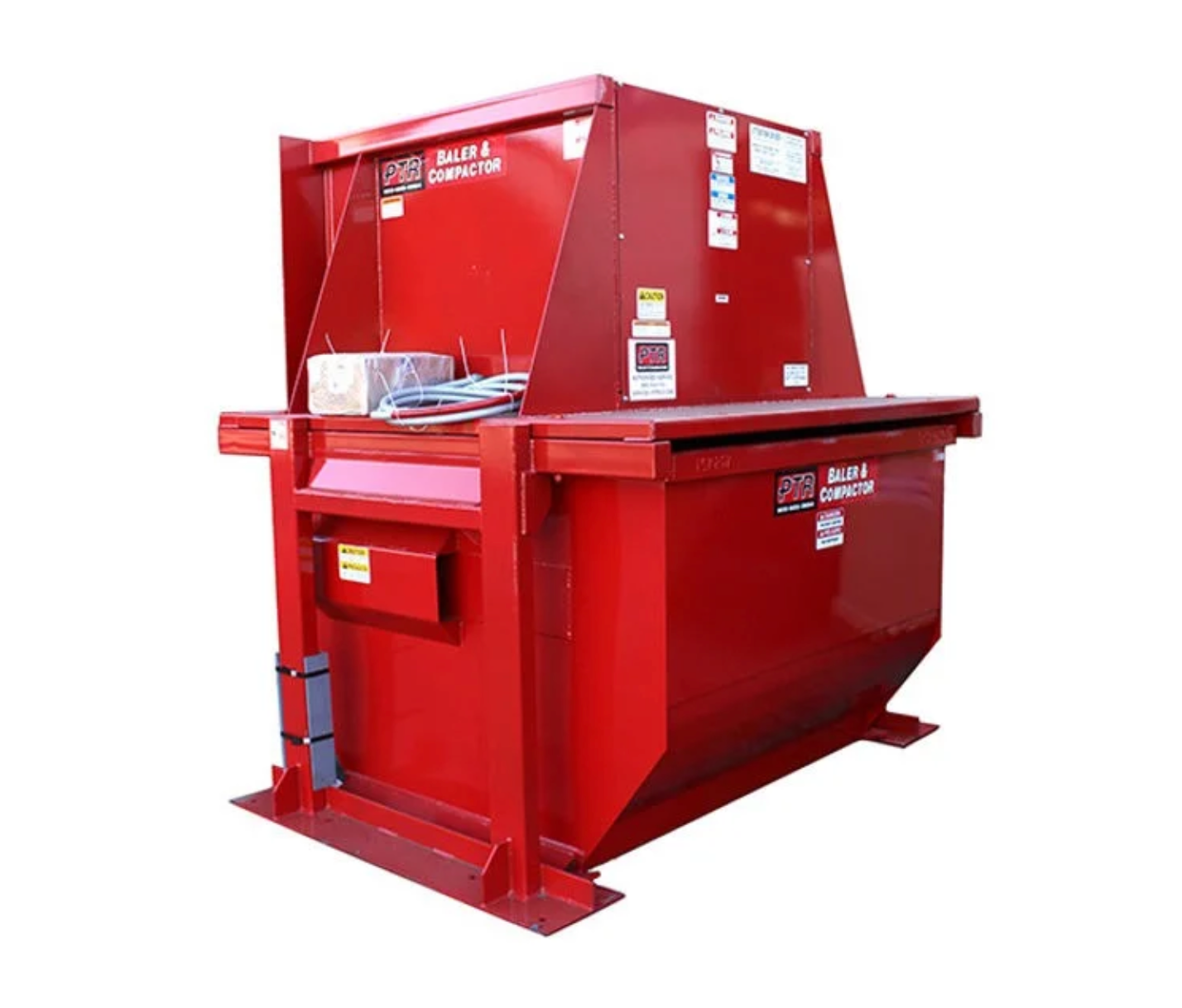

Vertical Compactor
The Vertical Compactor Series has been engineered to provide many years of reliable service. The heavy-duty structural steel components are welded by certified AWS (American Welding Society) technicians and tested to ensure high compaction forces.
Price options
SPECIFICATIONS
Performance Specs
Specifications
VCP-4, VCP-6, VCP-8
Charge Box Capacity
.73 Cu-YD [.6 Cu-m]
Feed Opening
(L X W) 26″ X 48″ [66 cm x 122 cm]
Capacity Per Hour
120 cy/hr
Performance Characteristics
VCP-4, VCP-6, VCP-8
Average Cycle Time
30 sec
Total Normal Force
28,920 lbs [128,643 N]
Total Maximum Force
33,786 lbs [150,288 N]
Normal Ram Pressure
17 psi [117 Kpa]
Maximum Ram Pressure
19 psi [131 Kpa]
Electrical Equipment
VCP-4, VCP-6, VCP-8
Electric
208 / 230 / 460 – 3 Phase
Control Voltage
110 – 120 Vac
Motor
3 HP
Hydraulic Equipment
VCP-4, VCP-6, VCP-8
Pump
3.2 GPM [12.1 L/m]
Normal Pressure
2,100 psi [13,790 KPa]
Maximum Pressure
2,400 psi [15,858 KPa]
Cylinder Bore
4″ [10.2 cm]
Cylinder Rod
2″ [5 cm]
Weight
5,000 Lbs [2268 Kg]
Specifications
VCP-4
VCP-6
VCP-8
Compactor Height
91 7/8″ [233 cm]
101″ [257 cm]
123 1/4″
Height to Top of light
97″ [246 cm]
106″ [269 cm]
128″
Width
101″ [257]
101″ [257 cm]
101″ [257 cm]
Compactor Depth
85 1/2″ [217 cm]
85 1/2″ [217 cm]
85 1/2″ [217 cm]
Overall Compactor Width
96 1/2″ [245 cm]
96 1/2″ [245 cm]
96 1/2″ [245 cm]
Load Height
45 1/4″ [115 cm]
58 1/4″ [148 cm]
76 1/2″ [194 cm]
